9150472 TRAVEL DEVICE

Posted on Posted in TRAVEL DEVICE

9150472 TRAVEL DEVICE

9150472 TRAVEL DEVICE
9150472 TRAVEL DEVICE

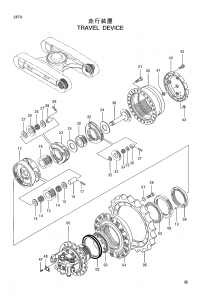

ENTIRE GROUP TRAVEL DEVICE:
9150472 I [2] – TRAVEL DEVICE ASS’Y 9155253 (for assembly of machine) .
(9155253) [2] – TRAVEL DEVICE ASS’Y (for transportation)
00. 9146471 I [1] – MOTOR;OIL 9149087 (for assembly of machine)
00. (9149087) [1] – MOTOR;OIL (for transportation)
02. 4114753 [1] – SEAL;GROUP
03. 4246793 [2] – BRG.;ROL.
04. 1018736 [1] – DRUM
05. 1018740 [1] – SPROCKET
06. J932055 [16] – BOLT
07. A590920 [16] – WASHER;SPRING
08. 3047448 [1] – HUB
09. 3057125 [1] – NUT
10. 4246783 [1] – PIN;KNOCK
12. 1019147 [1] – CARRIER
13. 3063957 [3] – GEAR;PLANETARY
14. 4317122 [6] – BRG.;NEEDLE
15. 4284521 [6] – PLATE;THRUST
16. 4315838 [3] – PIN
17. 4116309 [3] – PIN;SPRING
18. 3063959 [1] – GEAR;SUN
20. 1020184 [1] – GEAR;RING
21. J931640 [24] – BOLT
23. 2034836 [1] – CARRIER
24. 4192979 [2] – SPACER
25. 3063956 [3] – GEAR;PLANETARY
26. 4317121 [3] – BRG.;NEEDLE
27. 4210851 [6] – PLATE;THRUST
28. 4309995 [3] – PIN
29. 4192020 [3] – PIN;SPRING
30. 3063958 [1] – GEAR;SUN
32. 2034835 [1] – CARRIER
33. 3063955 [3] – GEAR;PLANETARY
34. 4210849 [3] – BRG.;NEEDLE
35. 4192910 [6] – PLATE;THRUST
36. 4210853 [3] – PIN
37. 4173093 [3] – PIN;SPRING
38. 2034834 [1] – SHAFT;PROP.
40. 2034833 [1] – COVER
41. 4285323 [1] – PIN;STOPPER
42. J011230 [12] – BOLT;SEMS
43. 4245797 [3] – PLUG
47. M492564 [2] – SCREW;DRIVE
48. 3053559 [1] – NAME-PLATE
