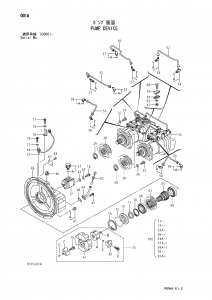

9195241 PUMP DEVICE

9195241 PUMP DEVICE
9195241 PUMP DEVICE

ENTIRE GROUP PUMP DEVICE:
9195241 I[1] –
PUMP DEVICE 9195238 <for assembly of machine>
9195238[1] –
PUMP DEVICE <for transportation>
02.1028405[1] –
CASING;GEAR .
04.3089266[1] –
GEAR;CENTER
05.3081085[1] –
SHAFT;CENTER .
08.4395453[1] –
BRG.;BALL .
09.4395457[1] –
BRG.;BALL .
10.4191219[1] –
RING;RETAINING .
11.4179833[1] –
SEAL;OIL .
12.3033593[1] –
COVER;T.MISSION .
13.4179834[1] –
O-RING .
14.991733[1] –
RING;RETAINING .
17.9217993[1] –
PUMP;GEAR
18.M341030[2] –
BOLT;SOCKET .
20.984054[2] –
WASHER;SPRING .
22.4114402[2] –
WASHER .
23.4191974[1] –
ADAPTER .
23A.4506418[1] –
O-RING .
28.3035853[2] –
GEAR;DRIVE .
29.991345[2] –
RING;RETAINING .
32.9195242 I[2] –
PUMP;UNIT 9207291 <for assembly of machine> .
32.9207291[2] –
PUMP;UNIT <for transportation>
35.J901645[8] –
BOLT .
36.4126090[4] –
WASHER;SEAL
37.A590916[4] –
WASHER;SPRING
40.4234782[1] –
PLUG
50.4438889[2] –
PIPE
52.4438888[1] –
PIPE
54.4203485[1] –
FITTING;PIPE
54A.957366[1] –
O-RING
55.3089617[1] –
PIPE
56.3089618[1] –
PIPE
57.4118499[4] –
FITTING;PIPE
57A.4297379[1] –
O-RING
58.4293950[5] –
ELBOW;S
58A.957366[1] –
O-RING
59.4179843[2] –
CLAMP
60.J900830[1] –
BOLT
61.M500807[1] –
NUT
62.A590908[1] –
WASHER;SPRING
63.4242263[1] –
GAUGE;LEVEL
64.4242262[1] –
PIPE
65.M340816[2] –
BOLT;SOCKET
66.9742779[1] –
PACKING
67.+++++++[1] –
NAME-PLATE
68.M492564[2] –
SCREW;DRIVE
69.4265372[1] –
SENSOR;REVOL.
70.4306888[1] –
O-RING
71.A590106[1] –
WASHER;PLANE
72.M340616[1] –
BOLT;SOCKET
73.4479978[1] –
COUPLING
73A.4613100[1] –
HUB
73B.4183170[2] –
SCREW;SET
73C.4101345[12] –
PIN;SPRING
73D.4216947[4] –
INSERT
73E.4216949[4] –
BOLT;SOCKET
73F.4216946[4] –
INSERT
73G.4216948[4] –
BOLT;SOCKET
73H.4216944[1] –
COUPLING
76.4252767[1] –
BRACKET
77.M340613[1] –
BOLT;SOCKET
78.4169516[1] –
WASHER;SPRING
81.4092534[1] –
PLUG
81A.4509180[1] –
O-RING
100.4471487[1] –
KIT;SEAL
