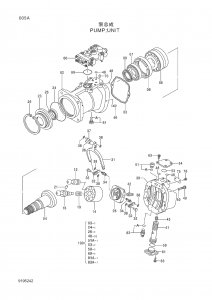

9207291 PUMP UNIT

9207291 PUMP UNIT
9207291 PUMP UNIT

9195242 I[2] –
PUMP;UNIT 9207291 <for assembly of machine> .
9207291[2] –
PUMP;UNIT <for transportation>
02.1014184[1] –
CASING;PUMP
03.8068521[1] –
PACKING .
04.2038877[1] –
DISC;DRIVING .
06.4366256[1] –
BRG.;ROL. .
07.4366356[1] –
BRG.;ROL. .
08.3035965[1] –
SPACER .
09.4191665[1] –
NUT;BRG.
12.8051275[7] –
PISTON
14.2022744[1] –
ROTOR
16.3081023[1] –
SHAFT;CENTER
19.4194362[1] –
SPRING;COMPRES.
21.4198956[1] –
PIN
23.3035966[1] –
COVER;SEAL
24.4191664[1] –
O-RING
25.4094325[1] –
RING;RETAINING
26.4639126[1] –
SEAL;OIL
28.9749142[1] –
VALVE
31.3039569[1] –
LINK
32.9724756[2] –
LEVER
34.4179179[2] –
PIN
35.4179177[2] –
PIN
36.4200227[1] –
PIN
37.4179176[1] –
PIN
38.4146370[6] –
RING;RETAINING
39.1022441[1] –
HEAD
41.3106174[1] –
PISTON;SERVO
42.4641714[1] –
PIN
43.4337812[1] –
SCREW;SET
46.4099290[2] –
PIN;SPRING
48.4180349[10] –
O-RING
49.M341245[8] –
BOLT;SOCKET
50.495841[8] –
WASHER;SPRING
51.9134110[1] –
PLUG
51A.957366[1] –
O-RING
53.4355081[1] –
O-RING
54.4204862[1] –
STOPPER
59.4294621[1] –
O-RING
61.4216295[1] –
STOPPER
63.M340820[8] –
BOLT;SOCKET
66.9195243 I[1] –
REGULATOR 9207292 <for assembly of machine>
66.9207292[1] –
REGULATOR <for transportation>
69.4348665[1] –
O-RING
70.4515041[2] –
PIN;SPRING
75.+++++++[1] –
NAME-PLATE
76.M492564[2] –
SCREW;DRIVE
81.9134111[1] –
PLUG
81A.4509180[1] –
O-RING
83.4436271[1] –
SENSOR;PRES.
83A.4365826[1] –
O-RING
100.4467592[1] –
KIT;SEAL
