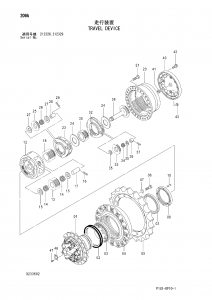

9233692 TRAVEL DEVICE

Posted on Posted in Final drive

9233692 TRAVEL DEVICE

9233692 TRAVEL DEVICE

9233692 I[1] – TRAVEL DEVICE 9261222 for assembly ofmachine
9261222[1] -TRAVEL DEVICE for transportation.
01.9257254 I[1] – MOTOR;OIL 9258325 for assembly of machine.
01.9258325[1] -MOTOR;OIL for transportation&gt.
02.4634693[1] -SEAL;GROUP .
03.4246793[2] -BRG.;ROL..
04.1033090[1] -DRUM
05.1033091[1] -SPROCKET
06.J932055[18] – BOLT
07.A590920[18] -WASHER;SPRING
08.3086531[1] – NUT
10.4436242[1] – PIN;KNOCK
12.1025875[1] – CARRIER
13.3084353[3] -GEAR;PLANETARY
14.4438593[6] – BRG.;NEEDLE
15.4284521[6] – PLATE;THRUST
16.4116309[3] -PIN;SPRING
17.4315838[3] – PIN
18.3082156[1] – GEAR;SUN
20.1025787[1] -GEAR;RING
21.J931640[24] -BOLT
23.2042432[1] -CARRIER
24.4401293[2] -SPACER
25.3082155[3] GEAR;PLANETARY
26.4438592[3] – BRG.;NEEDLE
27.4192982[6] -PLATE;THRUST
28.4402086[3] -PIN
29.4192020[3] -PIN;SPRING
30.3082149[1] – GEAR;SUN
32.2050691[1] – CARRIER
33.3100544[3] -GEAR;PLANETARY
34.4406589[3] BRG.;NEEDLE
35.4192910[6] – PLATE;THRUST
36.4210853[3] -PIN
37.4173093[3] -PIN;SPRING
38.2050692[1] – SHAFT;PROP.
40.2034833[1] – COVER
41.4478346[1] – PIN;STOPPER
42.4699148[12] – BOLT;SEMS
43.4245797[3] – PLUG
46.+++++++[1] -NAME-PLATE
47.M492564[2] – SCREW;DRIVE
