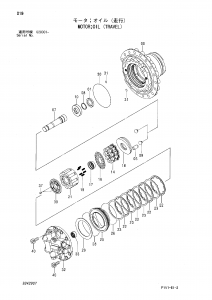

9257553 MOTOR OIL

9257553 MOTOR OIL
9257553 MOTOR OIL



9242907 I[1] – MOTOR;OIL 9257553 for assembly of machine.

(9257553)[1] -MOTOR;OIL for transportation

  1. 1031123[1] – HOUSING

01. 4613831[1] – SEAL;OIL

03.  4601724[1] – PISTON

07.  2049166[1] -SHAFT

08.  959499[1] -RING;RETAINING

09.  4600108[2] -PIN

10.  4600133[1] – BRG.;ROL.

14.  8099321[9]  PISTON

16.  3081570[1] -RETAINER

17.  4397757[1] -BUSHING

18.  2050565[1] -PLATE;SWASH

19.  4396747[6] -SPRING;COMPRES.

21.  2051451[1]  ROTOR

22.  3081593[4] -PLATE;FRICTION

23.  3081592[4]  PLATE

25.  3081595[1] -PISTON

26.  4396775[1] – O-RING

28.  4396774[1] – O-RING

29.  3081594[1] – SPRING;DISC

30.  4420958[1] – O-RING

31.  4506415[2] – O-RING

32.  9247662 I[1] – VALVE;BRAKE 9260003 for assembly of machine

32.  (9260003)[1] – VALVE;BRAKE for transportation;

33.  4631910[1] – BRG.;NEEDLE

37.  4630921[2] – PIN;KNOCK

39.  3106481[1]  PLATE;VALVE

40.  M341850[9] -BOLT;SOCKET
